Technical Sheet

Structure tent - XL Beam

Back
  • Home
  • Technical Sheet - Structure tent XL

Structure tent - XL beam

Technical Sheet

Download the full technical sheet
Read more Close
  • Canvas sliding system in a round profile rail (Keder)
  • Wind resistance up to 140 km / h
  • Versatile and standard parts
  • Compatible with our other models
  • Interchangeable legs and rafters
  • Square rail allows quick and economical attachment with a standard half-inch bolt
  • Double roof option for better insulation Anticondensation (excellent option for winter tents)
  • Sliding of the walls by small rollers also for rail keder

    • Read more Close

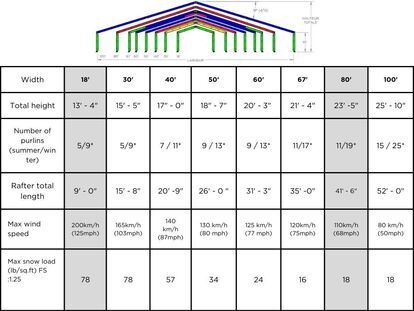

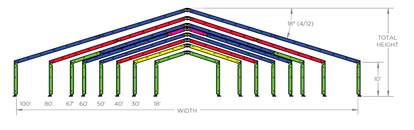

    Dimensions

    Tableau HTML
    Width 18' 30' 40' 50' 60' 67' 80' 100'
    Total height  13'-4" 15'-5" 17'-0"18'-7"20'-3"21'-4"23'-5"25'-10"
    Number of purlins in summer/*winter 5/9*5/9*7/11*9/13*9/13*11/17*11/19*15/25*
    Rafter total length 9'-0"15'-8"20'-9"26'-0"31'-3"35'-0"41'-6"52'-0"
    Wind Resistance 200km/h
    (125mph)    		165km/h
    (103mph)    		140km/h
    (87mph)    		130km/h
    (80mph)    		125km/h
    (77mph)    		120km/h
    (75mph)    		110km/h
    (75mph)    		80km/h
    (50mph)
    structure tent xln

    Structure & XL profile

  • Dimensions: 4 - 1/2’’ X 12’’
  • Anodized 6005-T5 aluminum extrusion
  • Other parts in ASTM A36 and A514 Gr.S (CHT100) zinc plated steel
  • Steel cables 1/2 ‘’ - 6X19 white vinyl coated
  • 2X square rail for ‘Bolt-On’ attachment system (pendant lights, decor, etc.)
  • Universal bolt 1/2’’ - 13 Gr. 5

    • Vinyl

  • Coated vinyl 22oz
  • NFPA 701 and CAN / ULC-S109 fire retardant
  • Opaque to UV rays (Blackout)
  • Anti-mold vinyl
  • All vinyl parts inserted in the Keder rails (13mm)
  • Rollers for wall opening
  • Carrying bags of vinyl parts included

    • Tinted French windows

    Clear French windows

    Plain (no window)

    Panoramic tinted window

    Panoramic clear window

    Color, printing and stickers
